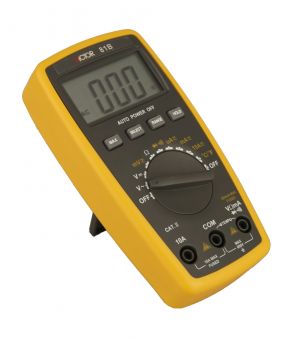

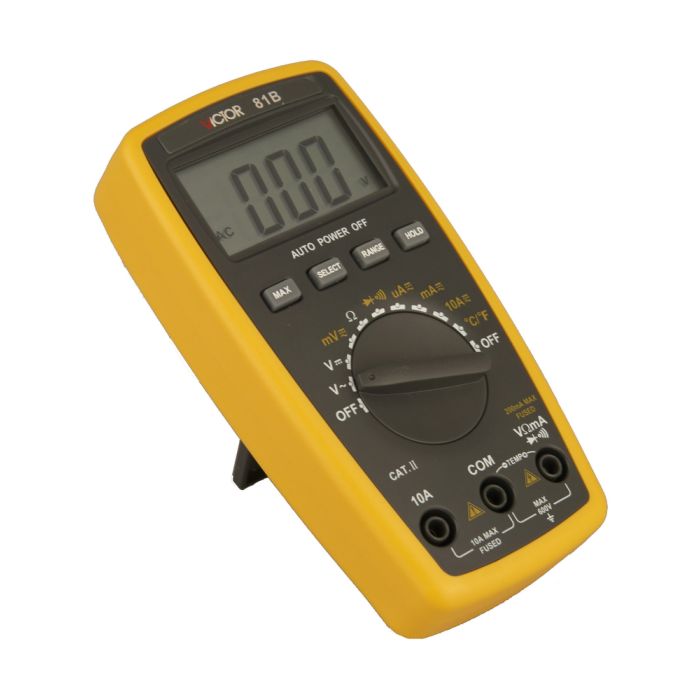

AUTO RANGE DIGITAL MULTIMETER
Funktion Mätområde Noggranhet
DCV 200mV / 2V / 20V / 200V / 600V ±(0.5%+4)
ACV 200mV / 2V / 20V / 200V / 600V ±(0.8%+6)
DCA 200µA / 2mA / 20mA / 200mA /10A ±(1.0%+10)
ACA 200µA / 2mA / 20mA / 200mA /10A ±(1.5%+10)
Resistance 200O / 2kO / 20kO / 200kO / 20MO ±(0.8%+4)
Celsius -20 - 1000°C ±(1.0%+5)
Fahrenheit 0 - 1832°F ±(1.0%+5)
Diod Test v
Continuity Buzzer v
Low battery Indicator v
Data Hold v
Auto Power Off v
Operation Way Auto / Manual
Input Impedance 10MO
Sampling Rate 3 times/s
AC Frequency Response 40-400Hz
Max Display 1999
LCD Display 57 x 33mm
Power 1.5V x 2
Dimension 145 x 80 x 30mm
